Indirect Ophthalmoscope YZ25B
- Head-worn binocular indirect ophthalmoscope
- Clear image and excellent depth of field
- Light structure design and flexible operation
- Built-in color filter
- CE certificate

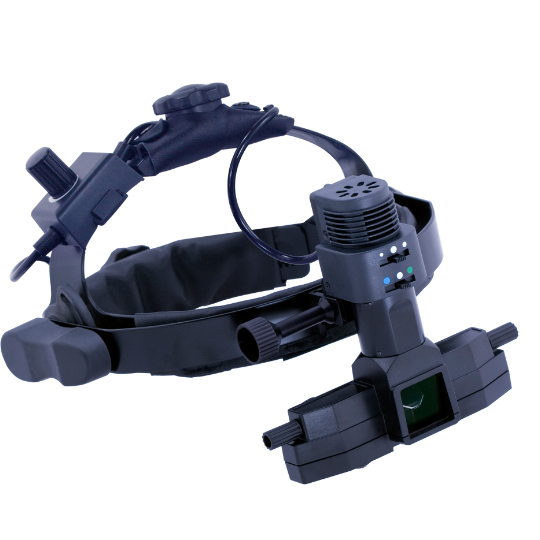

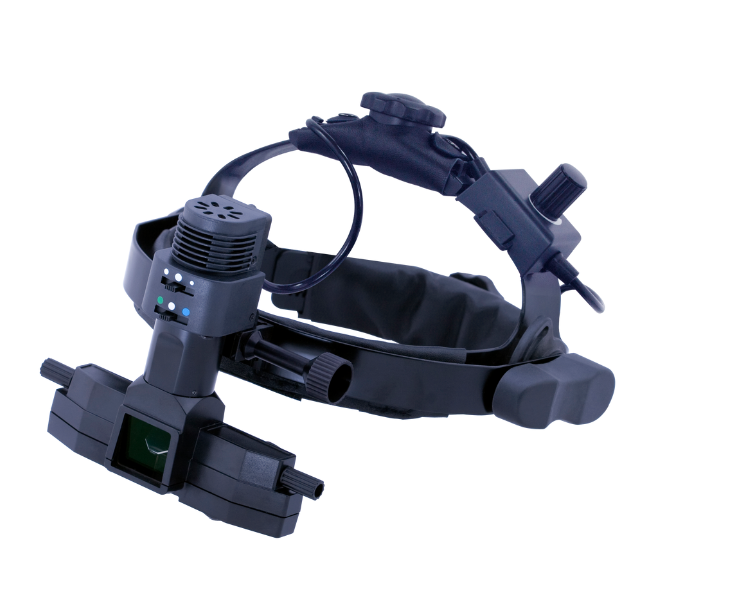

YZ25B Binocular Indirect Ophtalmoscope
YZ25B is a binocular indirect ophthalmoscope with an AC power supply for long-term use. It employs a halogen bulb to offer more comfortable illumination for patients. YZ25B is crucial equipment for diagnosing the cornea, aqueous, lens, vitreous, retina, optic nerve, vessels, and macula lutea of the eye.
Specifications
| Working Distance | 50.5mm |
| Pupil Distance | 52mm~74mm |
| Light Spot | Large, Medium, Small |
| Filters | Redfree, White Light, Cobalt Blue |
| Adjustable Range of Head Frame | 530mm~630mm in circumference, 85~125mm in depth |
| Illumination Source | 6V/10W Halogen Bulb |
| Power Supply | AC110V/220V±10%， 50Hz/60Hz |
Excellent Optical System and Illinimation
The excellent optical system of YZ25B indirect ophthalmoscope allows brilliant and vivid images to assist eye professionals in making precise diagnoses. The soft and comfortable illumination provides great experience for examinees.

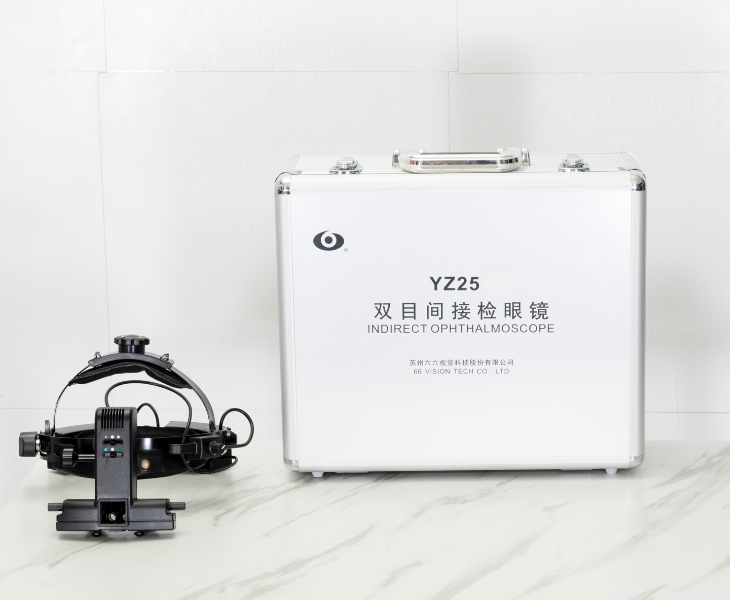

Compact Protective Case
The aluminum suitcase is small and exquisite, easy to carry, more durable, and lightweight.
Details of YZ25B Indirect Ophthalmoscope
YZ25B is designed as a head-mounted ophthalmoscope with an adjustable headband, which is very convenient because it frees up both hands.

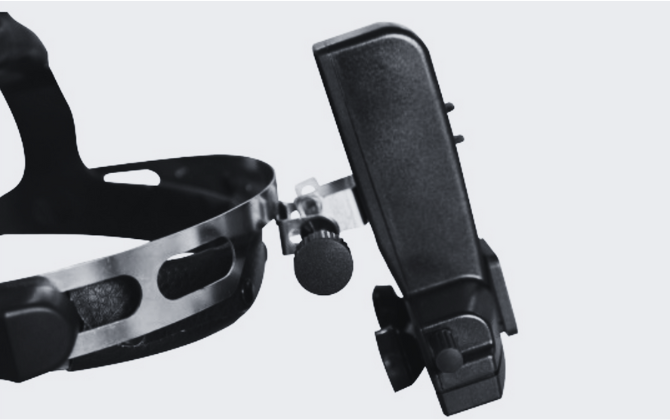

The 45-degree observation angle makes it more comfortable during examinations.

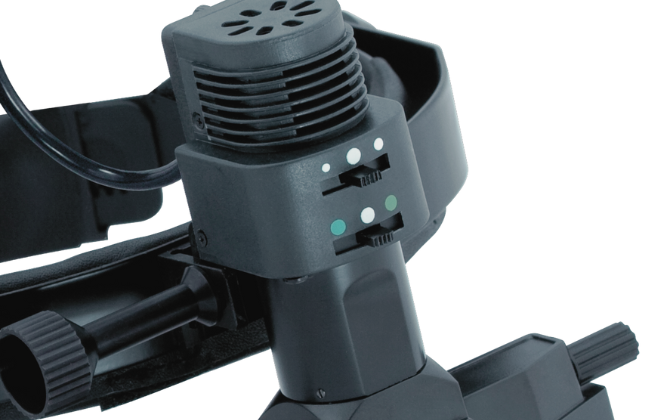

Filters and Apertures

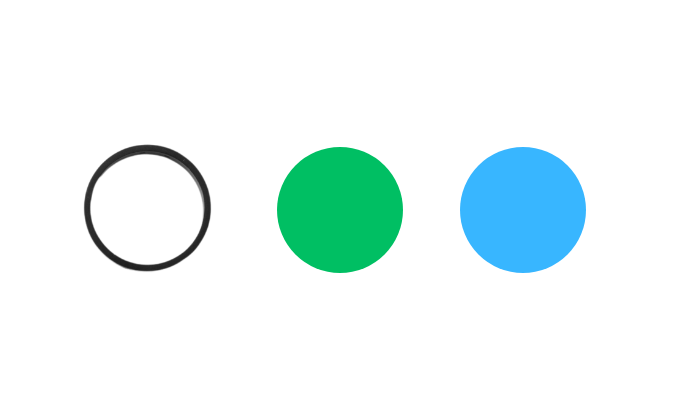

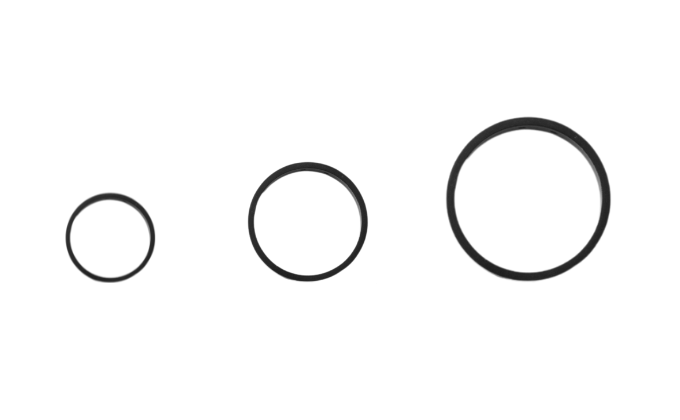

There are three color filters: white light, red-free, and cobalt blue, and three different-sized apertures: large 60mm, medium 40mm, and small 20mm, suitable for diverse pupils.
White light, red-free, and cobalt blue filters to detect different eye fundus diseases.
Accessories

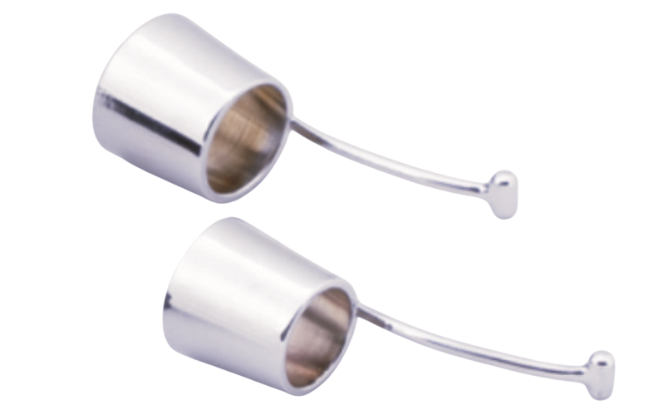

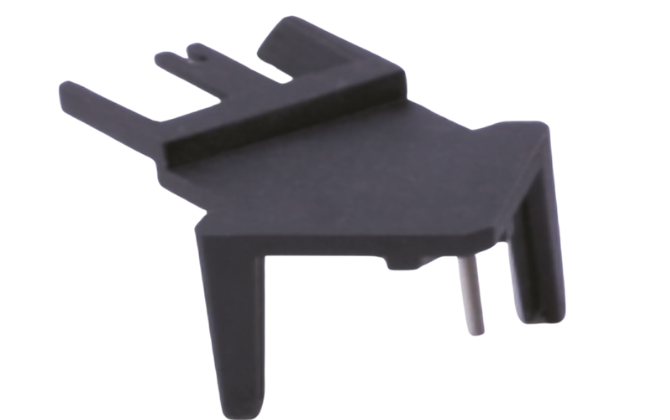

YZ25B indirect ophthalmoscope comes standard with a 20D aspheric lens, teaching mirror, and two sclera depressors.

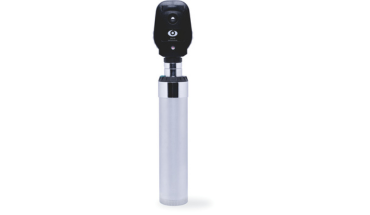

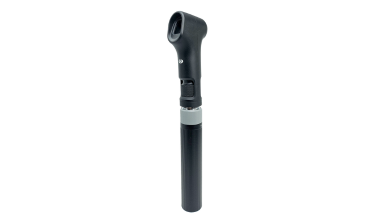

The direct ophthalmoscopes are monocular. You can use it with one hand because it is small and lightweight. Also, the structures are different. While the indirect ophthalmoscopes are binocular, they are mounted on the user’s head.
This is a personal preference. Halogen lamps have a warm and soft light, which makes inspection more comfortable. LED lights have high brightness, are energy-saving, environmentally friendly and more durable.
Yes! The indirect ophthalmoscope can examine dilated pupils and undilated pupils.
