Synoptophore
- Binocular design, easy observation
- Double Haidinger brushes to meet different examination needs
- LED light panel illumination
- 20 pairs of standard slides
What is a Synoptophore?
Synoptophores, also known as large amblyopia glasses or strabismus glasses, evolved from Worth amblyopia glasses.
66 Vision synoptophore is a diagnostic and therapeutic ophthalmic device. It is an essential instrument for diagnosing and treating amblyopia and strabismus.
66 Vision synoptophore, designed to check the binocular vision functions of the human eye, such as simultaneous vision, fusion, and stereoscopic vision, and diagnose ophthalmic diseases such as subjective and objective strabismus, abnormal retinal correspondence, latent strabismus, afterimage, and amblyopia.
Our synoptophore is especially suitable for children with hyperopic, myopic, ametropia, anisometropia, and amblyopia patients with abnormal retinal correspondence. It also has a good effect on congenital cataracts, nystagmus, and amblyopia caused by trauma.
Specification of Synoptophore
| Magnifications | 1.65X |
| Diameter of field | ≥56mm |
| Pupil adjustable range | 45~75mm |
| Red light | 𝛌=640mm flashing system |
| Each lens rotating horizontally | Converging 50°, diverging 40° |
| Each lens rotating vertically | ±30° |
| Slides moving up and down range | ±10△ |
| Flashing form | Manual/Automatic |
| Automatic flashing frequency | Ten-step, 30~300 times/minute |
| Automatic flashing alternation mode | ¼ on ¾ off ½ on ½ off ¾ on ¼ off |
| Darkroom illumination | LED bulb with symmetry design |
| Adjustable Haidinger brush | 50~100 round/minute |
| Power Supply | AC110V/22V ±10%, 50Hz/60Hz |
| Power consumption | 40VA |
Features of 66 Vision Synoptophore
Binocular design, Easy Observation
The semi-transparent and semi-reflective mirror on our synoptophore allows doctors to observe the patient’s eye position and eye movement, thereby accurately evaluating the patient’s eye function.66
Double Haidinger Brushes to Meet Different Examination Needs
66 Vision synoptophore equipped with Double Haidinger brushes rotating 50 to 100 rounds per minute, suitable for training and treating paracentral fixation and abnormal retinal correspondence.
LED Light Panel Illumination
66 Vision synoptophore adopts LED bulb with a symmetry design that allows for more convenient operations. The round LED light strip has the advantages of light concentration, low heat, and long service life. It is more energy-saving, environmentally friendly, and durable.
Slides for Synoptophore
Our synoptophores are equipped with three-level vision function, K angle, afterimage, Haidinger brush training, and random dot slides; 20 optional slides for quantitative measuring of solid acutance are available(40”~1000″)

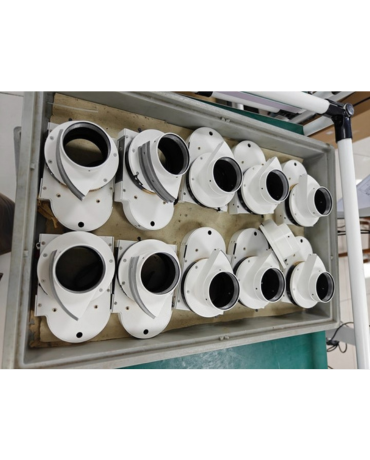

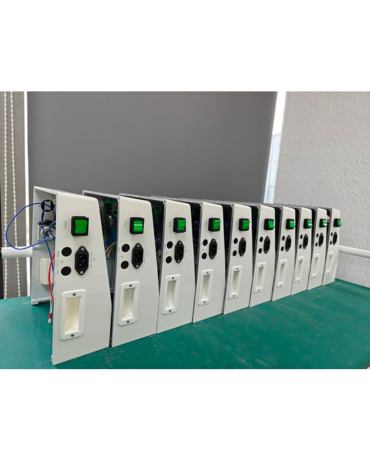

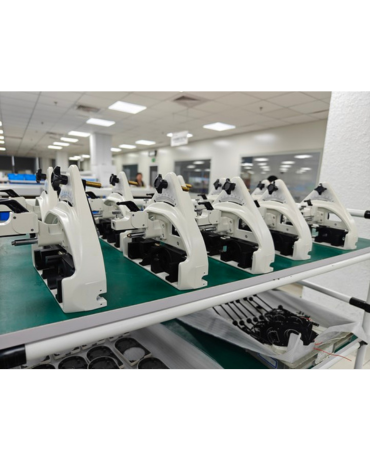

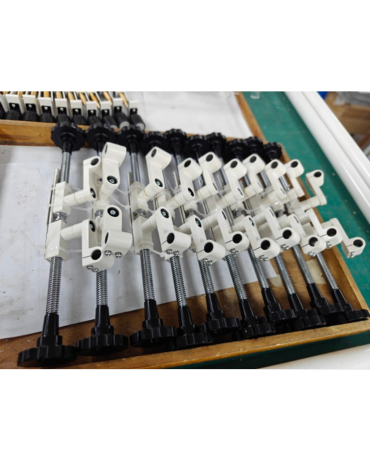

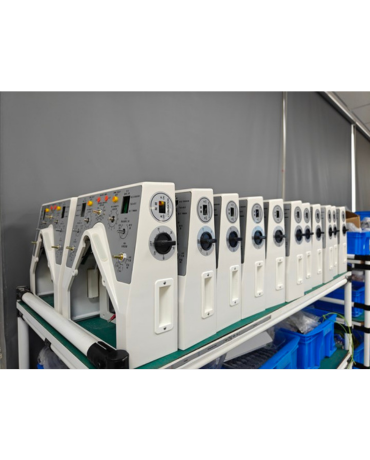

Synoptophore Parts on Production Lin
Aluminium Slides Case
Twenty pairs of standard slides are packed in the aluminium protective case. They are included in the synoptophore standard configuration. If you need more slides, get in touch with us now for more information!

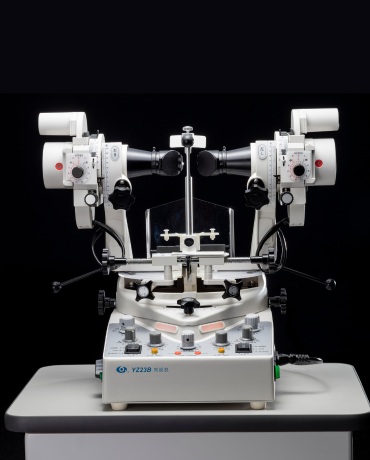

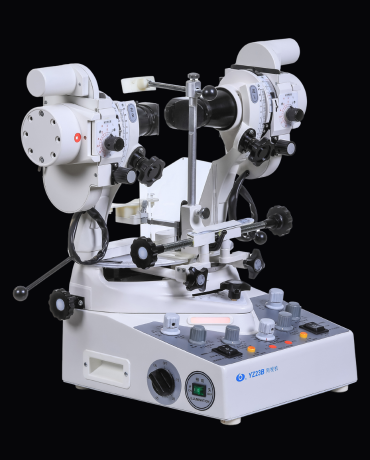

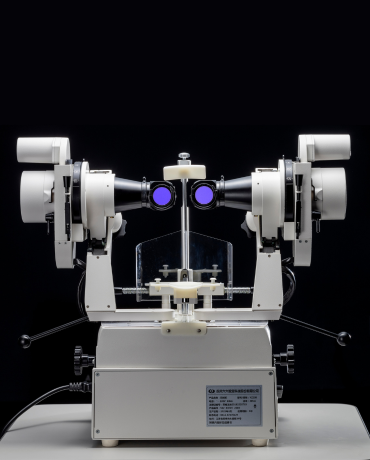

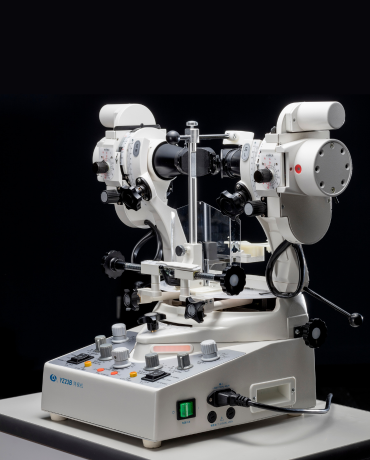

Synoptophore Gallery
66 Vision synoptophore is mainly used to check the binocular vision function, retinal correspondence, and strabismus of patients with strabismus and amblyopia. It can track the eye movement function according to the changing rules of strabismus in different diagnostic eye positions. It can also perform disinhibition training, abnormal retinal correspondence correction training, and amblyopia treatment on patients.
66 Vision synoptophore is composed of left and right lenses, a middle part, and a base part. Accessories include Haidinger brush box and slides.
Synoptophore slides are divided into four categories. Simultaneous perception slides are used to check the simultaneous perception of both eyes. Fusion slides are used to check secondary binocular vision. Stereoscopic slides are used to check stereoscopic vision. Special inspection slides include cross cards, post-image cards, Kappa angle cards, etc.

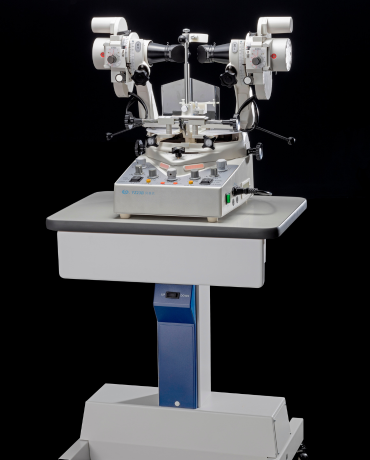

Yes, the motorized table will go with the synoptophore in the package! For more information, please get in touch with us now!
