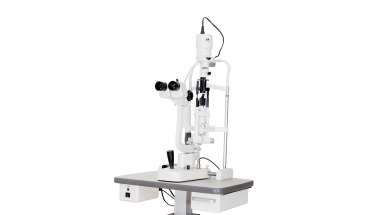

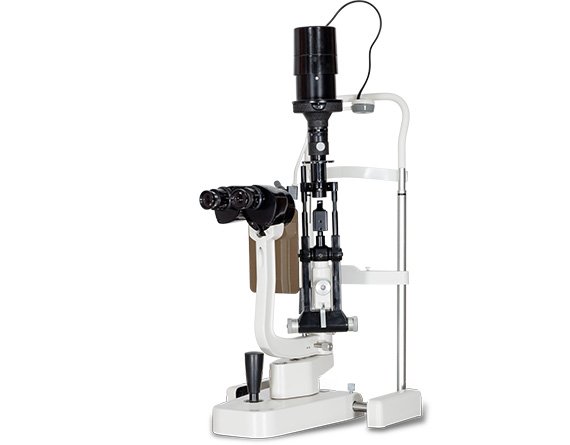

YZ5F Slit Microscope
- Converging stereoscopic microscope
- Three steps magnification
- German optics providing clear images
- Multi-coated lenses
- CE and FDA approval
Specifications
| Microscope type | Converging stereoscopic microscope |
| Objective magnification | Three steps magnifications |
| Eyepiece | 10X and 16X |
| Magnifications(Field of view) | 10X(𝞍18mm) 16X(𝞍11.25mm) 16X(𝞍14.5mm) 25.6X(𝞍9mm) |
| Pupil distance | 10X Eyepiece:55mm~82mm; 16XEyepiece: 51mm~78mm |
| Diopter adjustment | 10X Eyepiece: ±8D； 16X Eyepiece :±10D |
| Slit width | 0mm~9mm adjustable |
| Slit height | 1mm~8mm adjustable |
| Slit angle | 0°~180° adjustable |
| Slit inclination | 5° 10° 15° 20° |
| Filters | Heat absorption, Grey, Redfree, Cobalt blue |
| Illumination source | 12V30W halogen bulb/LED |
| Diameter of light spot | 𝞍9mm,𝞍8mm𝞍5mm𝞍3mm𝞍2mm𝞍1mm𝞍0.2mm |
| Power supply | AC110V/220V±10%， 50Hz/60Hz |
| Packing volume | 670mm*620mm*490mm |
| Total weight | 23kg |
| Optical accessories | R-type, T-type applanation tonometer, measuring eyepiece, Trihedron lens, gonioscope, funduscope, aspheric lens |

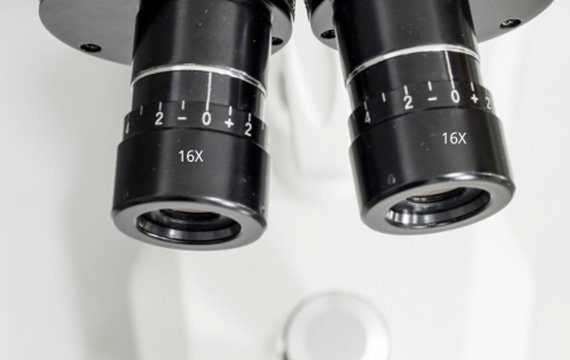

16X Eyepiece
The YZ5F designed by 66 Vision, is a 3-step magnification slit lamp to meet more needs. An extra 16X eyepiece is included in the package to achieve 3 magnifications by changing 10X and 16X eyepiece.

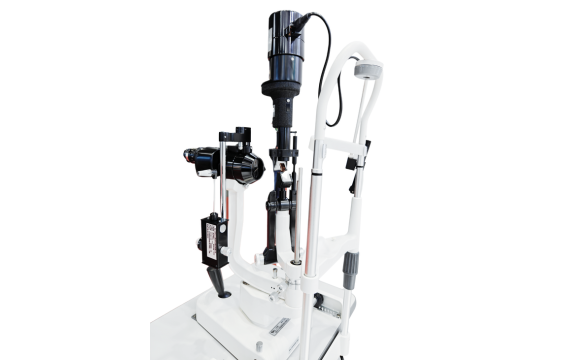

Certificate Support
Our YZ5F slit lamp has acquired CE and FDA certificates. This will allow it to register more smoothly in many countries.

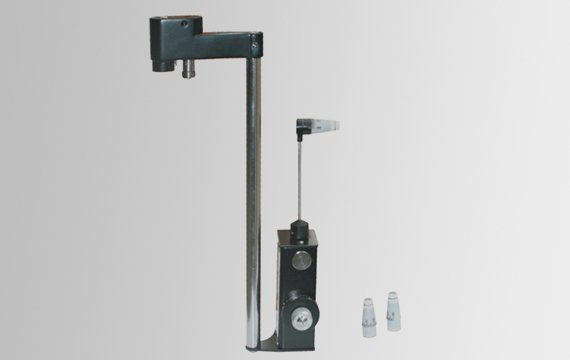

Optional accessories
There are also R-type and T-type applanation tonometer as optional accessories for this slit lamp. Get in touch with us now for our latest price!
