Slit Lamp YZ5J
- Converging stereoscopic microscope
- Two-step magnifications
- Halogen bulb/LED bulb
- FDA and CE approval
Microscope type | Converging stereoscopic microscope |
Objective magnification | Two-step magnifications |
Eyepiece | 10X |
| Magnifications(Field of view) | 10X(𝞍18mm) 16X(𝞍11.25mm) |
Pupil distance | 55mm~82mm; |
Diopter adjustment | ±6D |
| Slit width | 0mm~9mm adjustable |
Slit height | 1mm~8mm adjustable |
| Slit angle | 0°~180° adjustable |
Slit inclination | 5° 10° 15° 20° |
| Filters | Heat absorption, Grey, Redfree, Cobalt blue |
Illumination source | 12V30W halogen bulb/LED |
| Diameter of light spot | 𝞍9mm𝞍8mm𝞍5mm𝞍3mm𝞍2mm𝞍1mm𝞍0.2mm |
Power supply | AC110V/220V±10%， 50Hz/60Hz |
| Packing volume | 670mm*620mm*490mm |
Total weight | 23kg |
| Optical accessories | R-type, T-type applanation tonometer, measuring eyepiece, Trihedron lens, gonioscope, funduscope, aspheric lens |

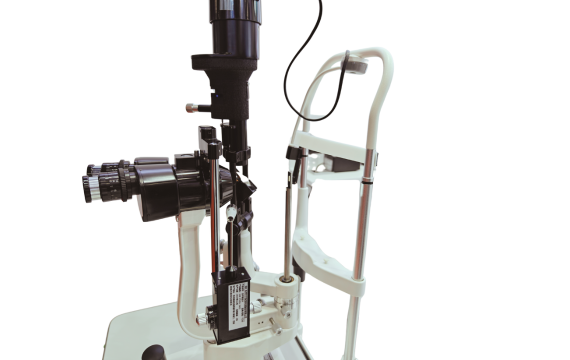

66 Vision YZ5J Slit Lamp
YZ5J is a two-step magnification slit lamp. It is designed as a basic type of eye examination equipment. The optional accessories, such as applanation tonometer, trihedron lens, gonioscope, and aspheric lens are available for this slit lamp. And the affordable price will save your budget.
CE and FDA Approved Slit Lamp
Our YZ5J slit lamp has CE and FDA approval. It is widely registered in many countries. We support you in registering locally. As an essential and classic diagnostic instrument, it is widely acclaimed by clients worldwide.
