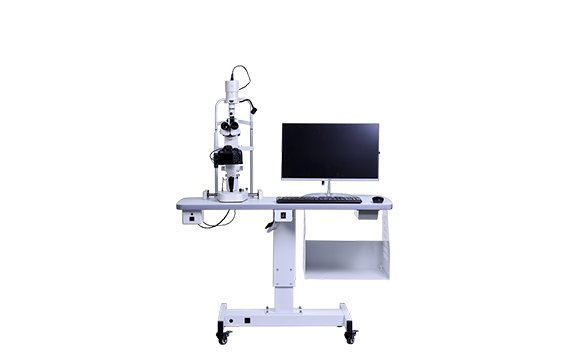

YZ5S Digital Slit Lamp
- All-in-one computer
- Dual screen real-time dynamic display
- Professional camera
- Halogen bulb/LED light source
- CE approval
Specifications
Microscope type | Galilean Stereoscopic Microscope |
| Objective magnification | Five-step drum magnification |
Eyepiece | 12.5X |
| Magnification(Field of view) | 6.3X(𝞍33mm),10X(𝞍22.5mm),16X(𝞍14mm),25X(𝞍8.8mm),40X(𝞍5.5mm) |
Pupil distance | 55mm~75mm |
| Diopter adjustment | -5D~+3D |
Slit width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
| Slit height | 1mm~14mm adjustable |
Diameter of light spot | 𝞍14mm, 𝞍10mm, 𝞍5mm, 𝞍2mm, 𝞍1mm, 𝞍0.2mm |
| Slit angle | 0°~180°adjustable |
Slit inclination | 5°, 10°, 15°, 20° |
| Filters | Heat absorption, Grey, Redfree, Cobalt blue |
Illumination source | 12V30W halogen bulb/LED |
Power supply | AC110V/220V±10%, 50Hz/60Hz |
| Optional accessories | Appanation tonometer, Measuring eyepiece, Trihedron lens, Gonioscope, Funduscope, Aspheric lens |
Dynamic display | LCD and computer screen real-time dynamic display |
| Packing volume | 670mm*620mm*490mm |
Total weight | 23kg(table and computer not included) |
| Processing function | Length, Angle, Area, Measuring, Arrowhead, Word adding, Image processing |
Table (optional) | YT2GD |
Digital Imaging System
66 Vision YZ5S slit lamp microscope is designed as a digital imaging system with professional 24.2 megapixels camera. Humanized patient record management software simplifies your workflow and achieves high efficiency. A printer stand is also included if you choose 66 Vision table.
Details of YZ5S Slit Lamp
